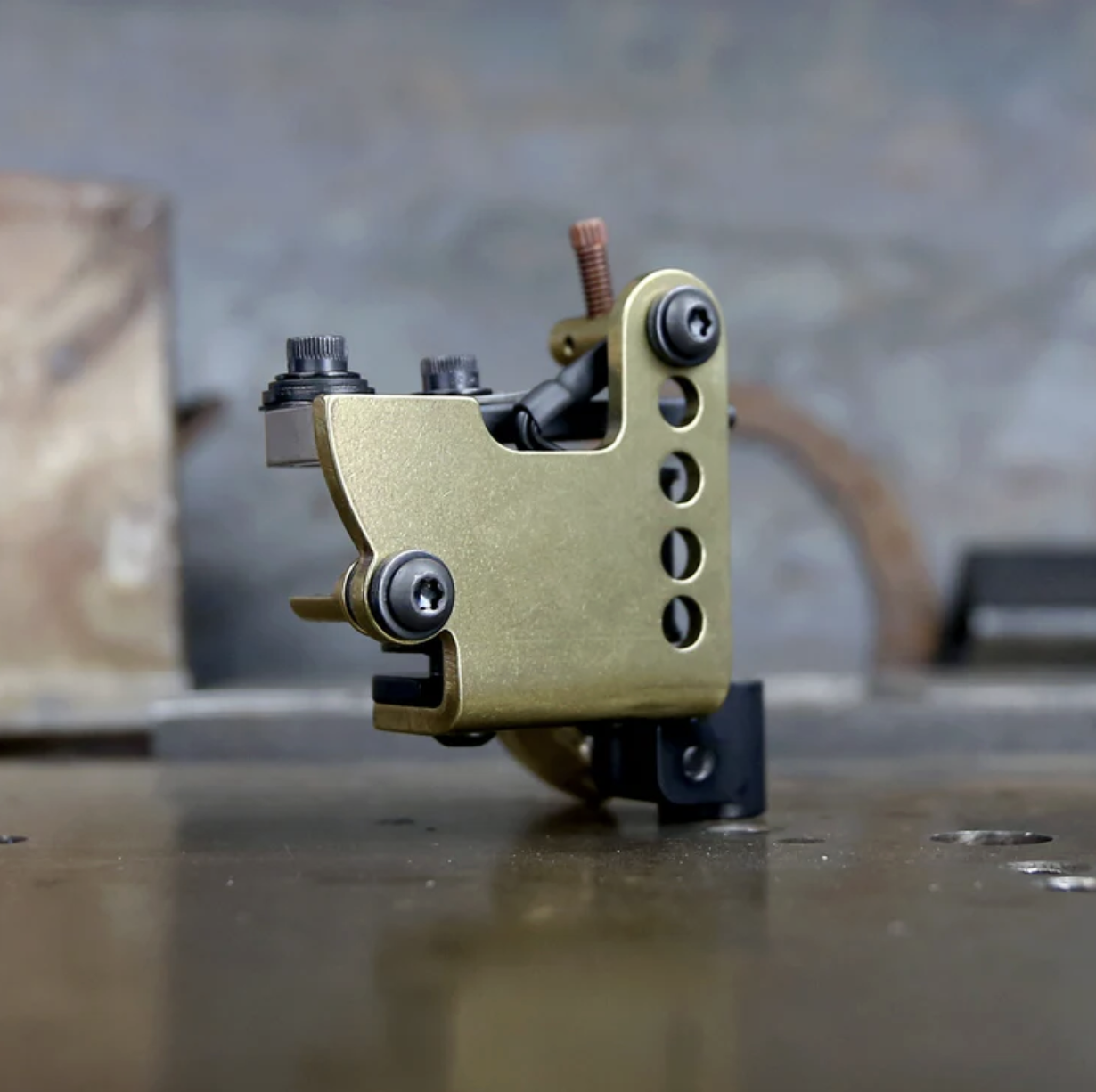

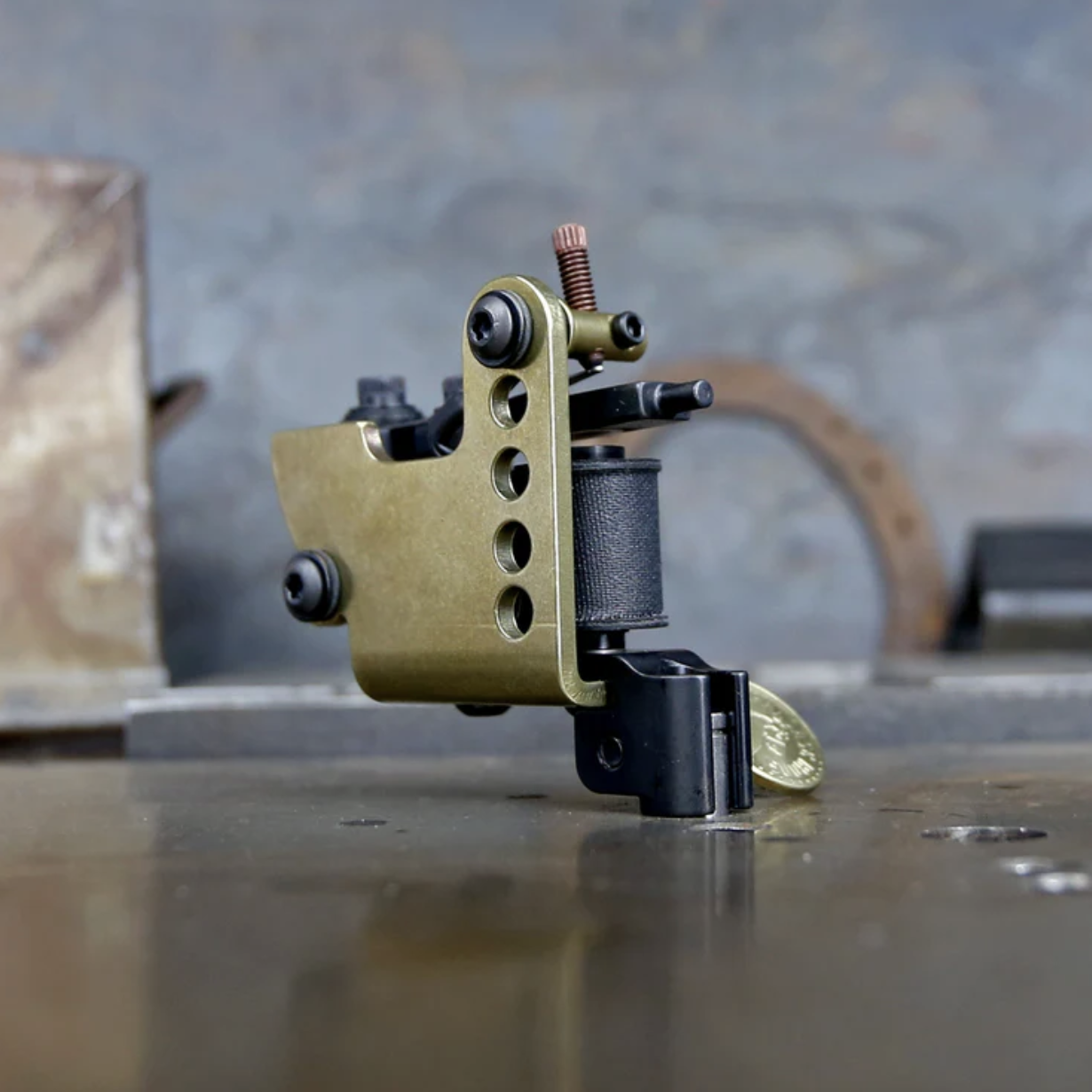

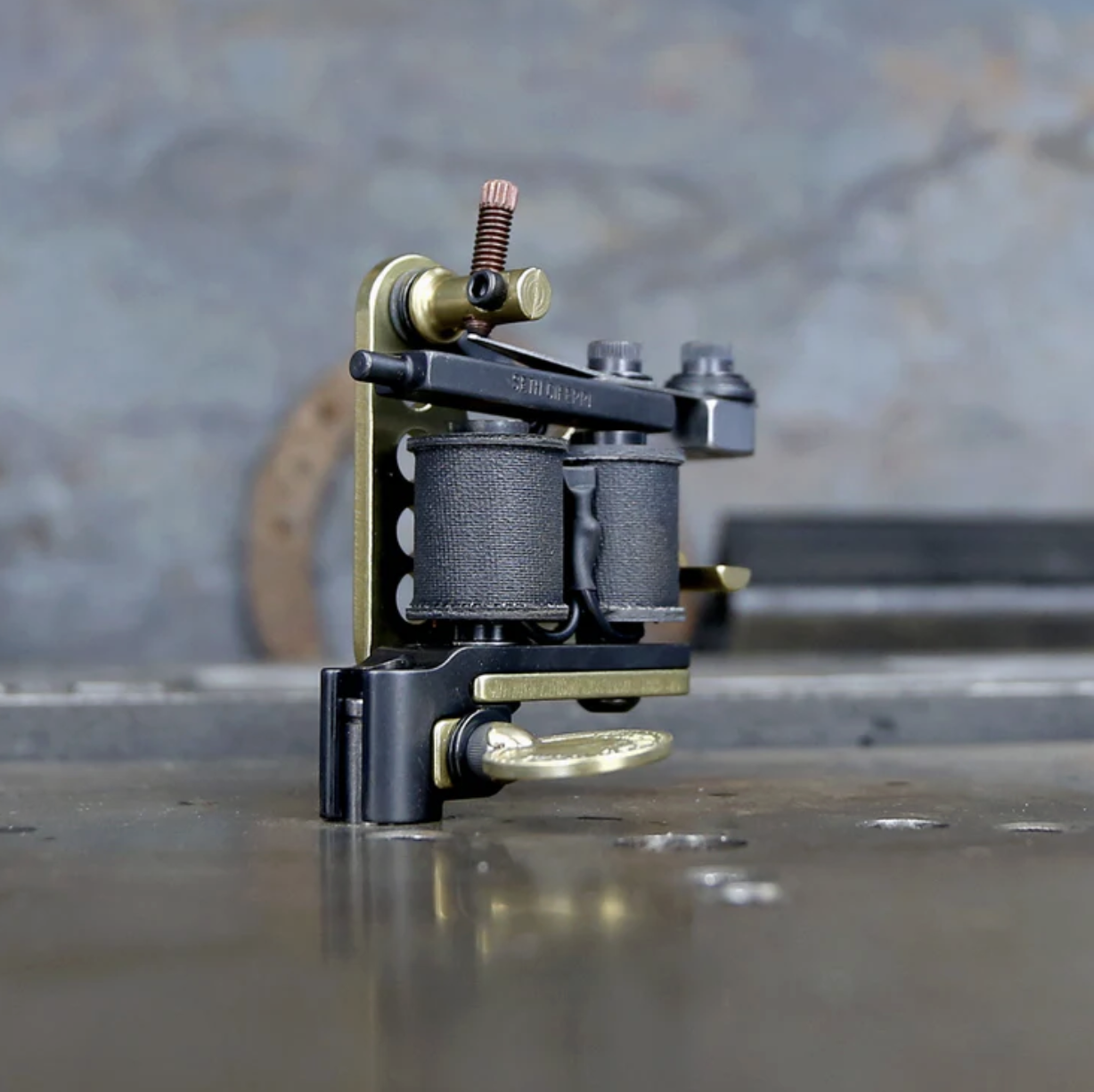

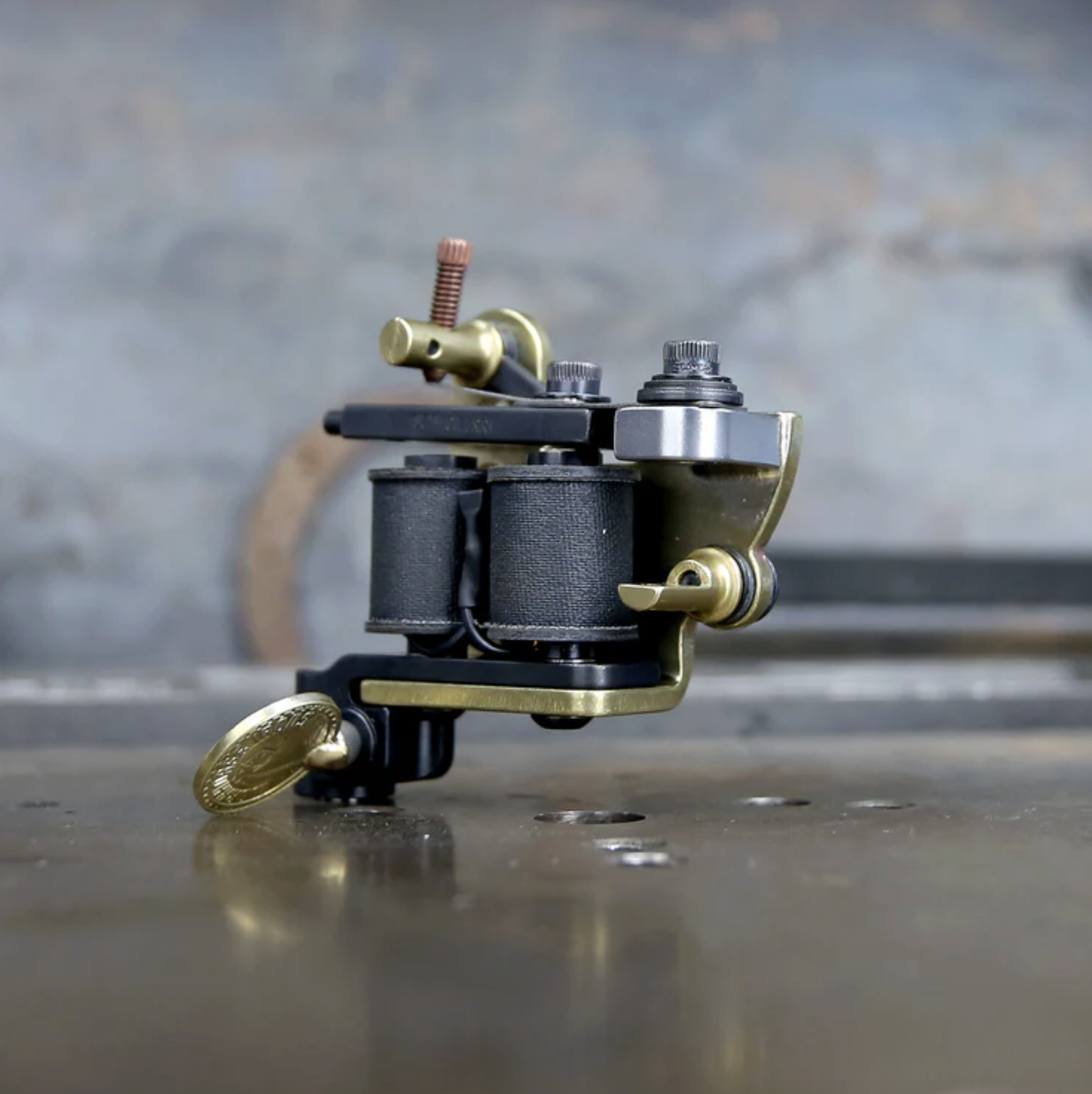

Seth Ciferri Doorbell Liner

Technical Specs:

• Laser Cut and Bent Steel English Doorbell Reproduction Frame

• Welded Spring Shelf

• Bolt on Deluxe Steel Vise with Slide Mechanism to lock tight on any tube

• Highly Durable, Oxidation Resistant Blackened Finish

• NEW Weighted Armature with Extra Thick Nipple

• NEW Narrow Stainless Rear Spring

• Deluxe Brass Binders

• Thick Base for better conductivity and less heat

• 1" 8 Wrap Custom Coils

• Medium Speed with a Solid Hit

• Running 125-130 Hz at 6V Unloaded

• Pushing 3's to 14's No Problem

• Weighing in at a compact and balanced 7 ounces with weight over hand and little cord pull

• As always, MADE IN THE USA

Here are a few words from Seth on this new machine:

This is a frame style I’ve been wanting to do for a long time, and finally got around to making it happen. Based almost entirely on an English doorbell I found at a flea market, with exact geometry, it hits HARD and can push any liner grouping on very low voltage and amps. PLUS I added in a new vise lock mechanism that holds any  tubes.

The response to these new doorbell liners has been overwhelming and exciting. It’s been a long time since I’ve designed and built a machine that gets me this hyped!

I think I’ve cracked the code on this one, my friends. Compact and sturdy, built to last a lifetime.

-Seth C.
